Product Overview:

Swllift tau koom nrog hauv kev tshawb fawb thiab kev tsim kho, tsim khoom, muag thiab kev pabcuam ntawm ntau lub tshuab ua haujlwm ntse, nrog ntau dua 150 qhov tshwj xeeb hauv peb cov khoom lag luam, uas yog boom, shear diav rawg thiab mast.

Swllift's ntse aerial ua haujlwm platforms yog siv rau hauv kev lag luam, kev lag luam thiab kev tsim kho, suav nrog kev tsim vaj tsev, kho kom zoo nkauj hauv tsev thiab kev saib xyuas, warehousing thiab logistics, petrochemical kev lag luam, nkoj tsim khoom thiab tu, nrog rau kev ua haujlwm tshwj xeeb xws li lub teb chaws daim phiaj, nuclear. fais fab nroj tsuag, high-speed railways, tshav dav hlau, tunnels thiab lwm yam.

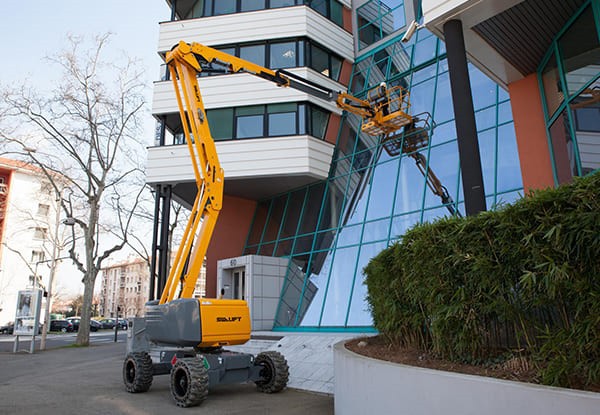

Articulating boom nqa nrog lub zog diesel yog qhov yooj yim rau kev khiav lag luam, siv tau yooj yim thiab muaj qhov chaw ua haujlwm loj. Rau kev ua haujlwm sab nraum zoov; saum toj no lub platform tuaj yeem tswj cov cuab yeej nqa thiab taug kev, tuaj yeem hla qee qhov kev txwv lossis nqa hauv ib qho chaw tuaj yeem nqa tawm ntau qhov chaw dav hlau ua haujlwm.

Advantages & Features:

1.Ua haujlwm ywj pheej txawm nyob hauv qhov chaw nqaim

Compact tsim nrog qhov dav ntawm 1.35m

Sau qhov siab los ntawm tus qauv qhov rooj jib mus txawv tebchaws 136 degree (+64 degree /-72 degree )

Lub vojvoog tig me me (2.4m)

2.Excellent productivity thiab kev nplij siab

Kab rov tav ncua ncua deb ntawm 6.5m Ntev ua haujlwm mus

Full proportional tswj

3.Articulating boom nqa nrog diesel lub zog ruaj khov qauv, nyab xeeb thiab txhim khu kev qha, yooj yim los tswj

Cim npe nrov: Tuam Tshoj articulating boom nqa nrog diesel zog, Tuam Tshoj articulating boom nqa nrog diesel zog manufacturers, lwm tus neeg, Hoobkas

Khoom Parameter:

Diesel Articulating Boom Lift Models thiab Parameters
Qauv	S20D	S24D	S26D	S30D	S38D
Max Ua Haujlwm Qhov siab	22m	26.2m	28m	32m	40.1m
Max Platform Qhov siab	20m	24.2m	26m	30m	38.1m
Max Spanning Qhov siab	9.4m	10.2m	10.2m	12.2m	19.5m
Max Ua Haujlwm Radius	12m	15.4m	17.28m	20.2m	21.6m
Platform Dimensions (L * W)	1.83*0.76m	2.44*0.91m	2.44*0.91m	2.44*0.91m	2.44*0.91m
Tshuab Length (Stowed)	8.54m	10.65m	11.7m	13.1m	14.2m
Tshuab dav (Stowed)	2.38m	2.48m	2.58m	2.49m	2.49m
Tshuab Qhov siab (Stowed)	2.55m	2.85m	2.97m	3.22m	3.17m
Log Base	2.4m	3m	3m	3.66m	3.96m
Av Clearance (Center)	0.4m	0.4m	0.43m	0.43m	0.43m
Tshuab hnyav	(2WD) 9380 Kg	16 300 Kg	(2WD) 16800 Kg	18 000kg	24 500kg
Tshuab hnyav	(4WD) 9500kg	16 300 Kg	(4WD) 17000kg	18 000kg	24 500kg
Load Capacity	230kg ua	230kg ua	230kg ua	230kg / 480kg	230kg / 480kg
Hwj chim	35.5kw / 2400 rpm	43kw / 2200 rpm	54kw / 2400 rpm	54kw / 2400 rpm	54kw / 2400 rpm
Tswj Voltage	12V	12V	12V	12V	12V

Electric Articulated Boom Lift Models thiab Parameters
Qauv	S09	S11	S14	S16	S18	S20
Max Ua Haujlwm Qhov siab	11.5m	12.52 m	16m	17.7m	20.2m	22.5m
Max Platform Qhov siab	9.5m	10.52 m	14m	15.7m	18.2m	20.5m
Max Hla Qhov siab	4.5m	4.65 m	7.0m	7.3m	8.0m	9.4m
Max Ua Haujlwm Radius	6.2m	6.5 m	7.5m	8.9m	11.1m	11.8m
Rated Load Capacity	200 kg	200 kg	230kg ua	230kg ua	230kg / 350kg	230kg / 350kg
Av Clearance (Center)	0.14m	0.14 m	0.25m	0.2m	0.3m	0.3m
Platform tig	± 80 degree	± 80 degree	± 80 degree	± 80 degree	± 80 degree	± 80 degree
Turntable tig	355 degree	355 degree	355 degree	355 degree	355 degree	355 degree
Tsav ceev (Stowed)	4.8 km / h	4.8 km / h	5.1km / h	5. 0km/h	4.8 km / h	4.5 km / h
Gradeability (Stowed)	0.35	0.35	0.3	0.3	0.45	0.4
Tshuab hnyav	4 800kg	5200kg ib	5 960kg	6 630kg	9 100kg	10000kg
Roj teeb	48V / 320Ah	48V / 320Ah	48V / 320Ah	48V / 320Ah	48V / 420Ah	48V / 420Ah
Tswj Voltage	24V	24V	24V	24V	24V	24V
Pump Tsav	4 kwv	4 kWm	4 kwv	4 kwv	12 kwv	12 kwv

Kev tsim kho Case:

Vim li cas thiaj xaiv peb?

Peb muab ntau hom khoom nqa nqa kom haum rau cov kev xav tau sib txawv thiab kev siv. Txawm hais tias koj xav tau boom nqa, txiab nqa, kab laug sab nqa lossis lwm yam kev txhawb nqa nqa, SWLLift muaj kev xaiv dav. Peb cov khoom tsim los tswj cov peev txheej sib txawv thiab hloov mus rau qhov chaw ua haujlwm sib txawv.

Ntawm SWLLift, cov neeg siv khoom txaus siab yog peb lub hom phiaj thib ib. Peb siv zog los muab cov khoom tshwj xeeb thiab cov kev pabcuam thiab ib txwm mloog peb cov neeg siv khoom tawm tswv yim. Peb lub hom phiaj yog los tsim kom muaj kev sib koom tes ntev nrog peb cov neeg siv khoom thiab xyuas kom lawv ua tiav hauv kev txhawb nqa.

FAQ

1.Koj puas muab kev pabcuam OEM?

Peb pab neeg muaj kev paub OEM nplua nuj thiab tuaj yeem muab kev pabcuam rau koj.

2.Nws yuav siv sij hawm ntev npaum li cas rau nkoj?

Peb yuav muab koj nrog rau hnub xa khoom raug raws li cov khoom lag luam ntau lawm thiab lub sijhawm thauj mus los.

3.Dab tsi ntawm kev pab cuam tom qab muag koj muab?

Peb pab neeg tom qab kev muag khoom muaj kev paub dhau los thiab kev tshaj lij los muab kev pabcuam zoo rau koj.

4.Qhov kev lees paub zoo li cas koj muab?

Peb xyuam xim rau cov neeg siv khoom tawm tswv yim thiab kev xav, daws cov teeb meem zoo raws li lub sijhawm thiab ua kom raug ntsuas los tiv thaiv cov teeb meem zoo sib xws los ntawm kev rov tshwm sim.

5.Lub teb chaws twg peb xa peb cov khoom mus rau?

Peb cov khoom raug muag hauv ntau lub tebchaws hauv Asia, Middle East, Europe, Africa, South America thiab Oceania.

6.Txoj kev them nqi yog dab tsi?

Cov kev them nyiaj muaj xws li T / T, L / C, D / P, D / A, MoneyGram, credit card, PayPal, Western Union, nyiaj ntsuab thiab lwm yam kev xaiv.

7.Dab tsi yog txoj kev them nyiaj?

Peb lees txais FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express, DAF, DES thiab lwm yam kev them nyiaj sib txawv.

8. Lub tshuab warranty ntev npaum li cas?

Cov cav tov yog them los ntawm ib lub xyoo warranty.

9.Koj puas muaj koj tus kheej distributors?

Yog lawm, peb ua haujlwm nrog ntau tus neeg xa khoom los muab peb cov khoom thiab cov kev pabcuam.
